Quick Details

  • Brand Name: China Electric
  • Model Number: Y2
  • Type: Asynchronous Motor
  • Frequency: 50/60Hz
  • Output Power: customized
  • Protect Feature: Drip-proof
  • Phase: Three-phase
  • Certification: CCC, CE, UL
  • AC Voltage: 380v
  • Place of Origin: Shanghai, China (Mainland)
  • Efficiency: IE 2
  • Product Name: 3 phae 700rpm 5000kw electric motor
  • Structure: Compact Structure
  • Motor Type: Squirrel-cage
  • Protection Grade: Normal IP54
  • Insulation: Normal class F
  • Pole: 2, 4, 6, or 8 poles
  • Standard: IEC standard
  • Isulation grade: F grade
  • Ambient condition: Normal Temperature ≤40℃, Normal Altitude ≤1000m
  • Mounting: Normal IMB3

Packaging & Delivery

Packaging Details One piece in one plywood cases for 3 phae 700rpm 5000kw electric motor
Delivery Time Shipped in 30 days after payment
Product Description

3 phae 700rpm 5000kw electric motor





 Product description

3 phae 700rpm 5000kw electric motor has a compact construction. It is an ideal drivig machine for compressor, fan, pump, crusher, crack machine, cut machine, transportation machine, etc.. The motor is the new generation of YKK series motor, which has smaller volume and lighter weight.



To use the motor, the altitude shall not exceed 1000m above sea level.

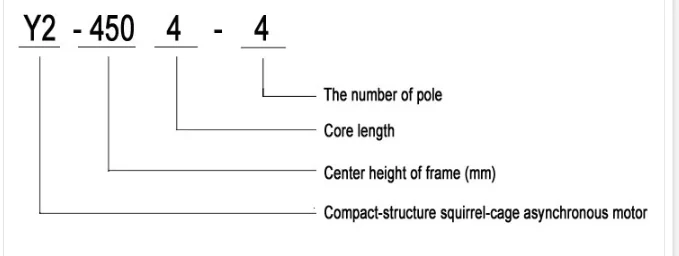

Model explanation

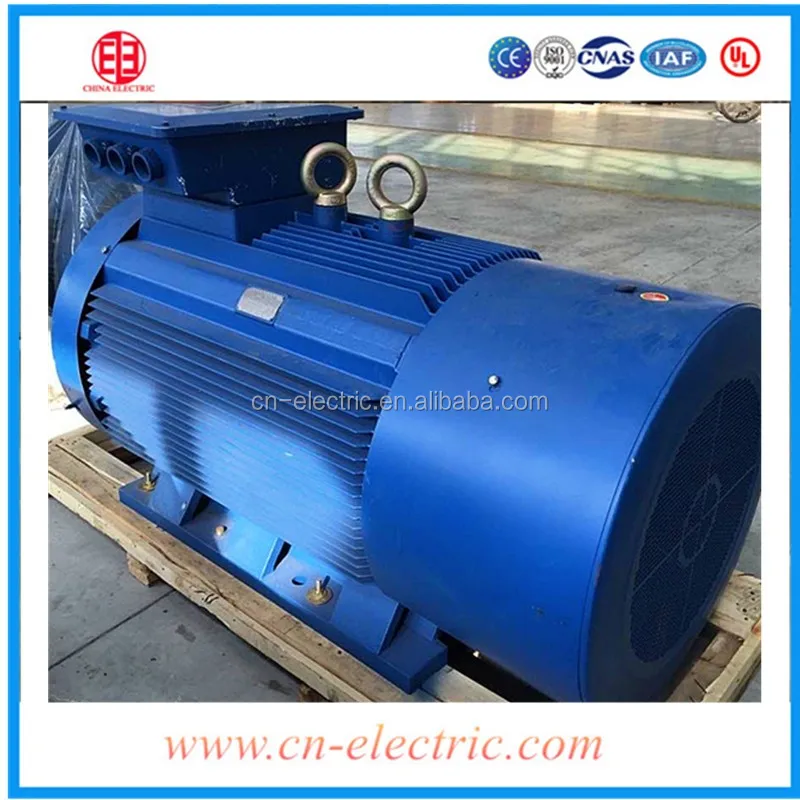

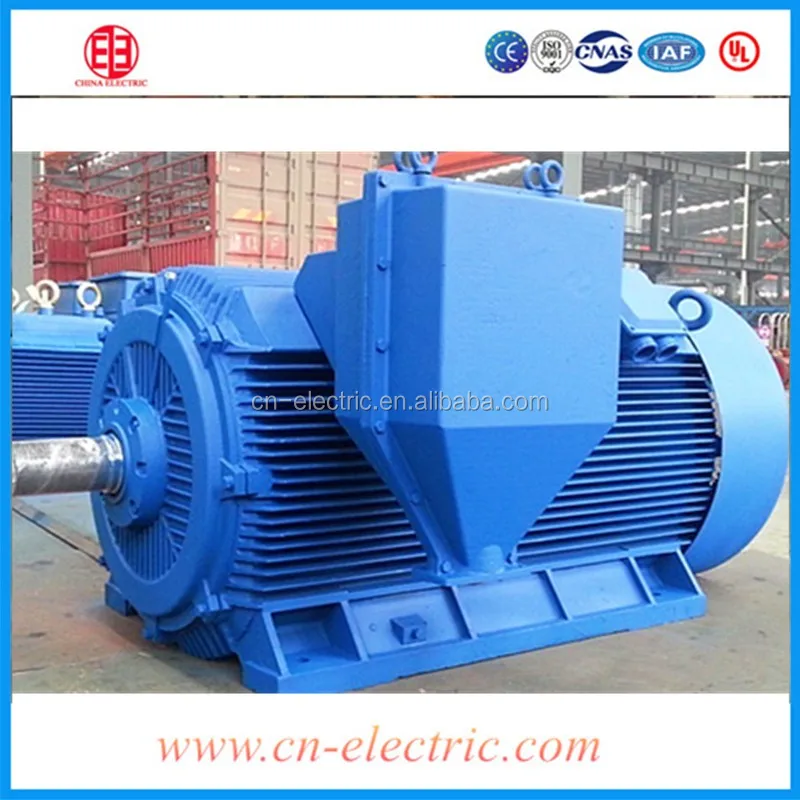

Detailed pictures

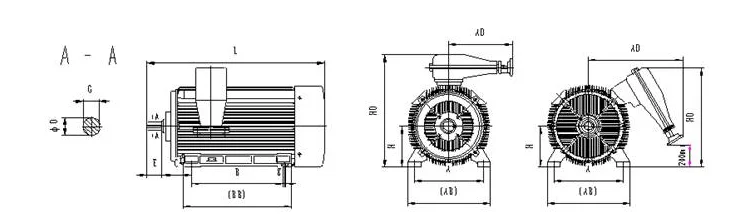

Installation Choice



Installation & specification

No.

Squirrel cage motor

Y

YKK

YKS

Y2



Slip ring motor

YR

YRKK

YRKS

/

1

Structure

Box-type construction, made up of steel plates welded with each other

Compact struction

2

Cooling method

IC01 or (IC11, IC21, IC31)

IC611 or IC616

IC81W

IC411

3



Natural ventilation, with top mounted protection cover

With top mounted air-air cooler

With top mounted air-water cooler



4

Protection type

IP23

IP44 or IP54

IP44 or IP54

IP54

5

Insulation

F

6

Mounting arrangement

IMB3

7

Voltage available

3kv, 3.3kv;     6kv, 6.6kv;     10kv, 11kv

8

Frequency available

50Hz , 60Hz



Packaging & Shipping



Company information

      China Electric (Shanghai) Co., Ltd. is established since 1960s. It locates in Shanghai - the most important international financial and business center of China and has employees more than 1000. Its factory is about 30,000~50,000 square meters. With rich experience in manufacturing and exploring motors, the company has got ISO 9001:2000 Management Certification, CE Certificate for European Union, UL and CSA Certificate for North America, GOST Certificate for Russia and SONCAP Certificate for Nigeria for its products.





FAQ

 1. How can I get a quotation?

You can send your inquiry to the below rectangular blank directly and we will reply you in 5 hours.



2. Can I get a sample?

Yes. We can offer you a sample but it might not be free. However, we can give discount in your later order.



3. Can I view your factory?

Yes. We accept view of our factory in before order. Tell us your agenda in advance and we

can arrange then.
